Place of Origin: Shandong, China
Image: SN-H
Brand Name: sennai
Payment & Shipping Terms:
Minimum Order Quantity：100 pieces
Price：$0.60/pieces 100-499 pieces
Packaging Details：Plastic packaging
Supply Ability：2000 Piece/Pieces per Day

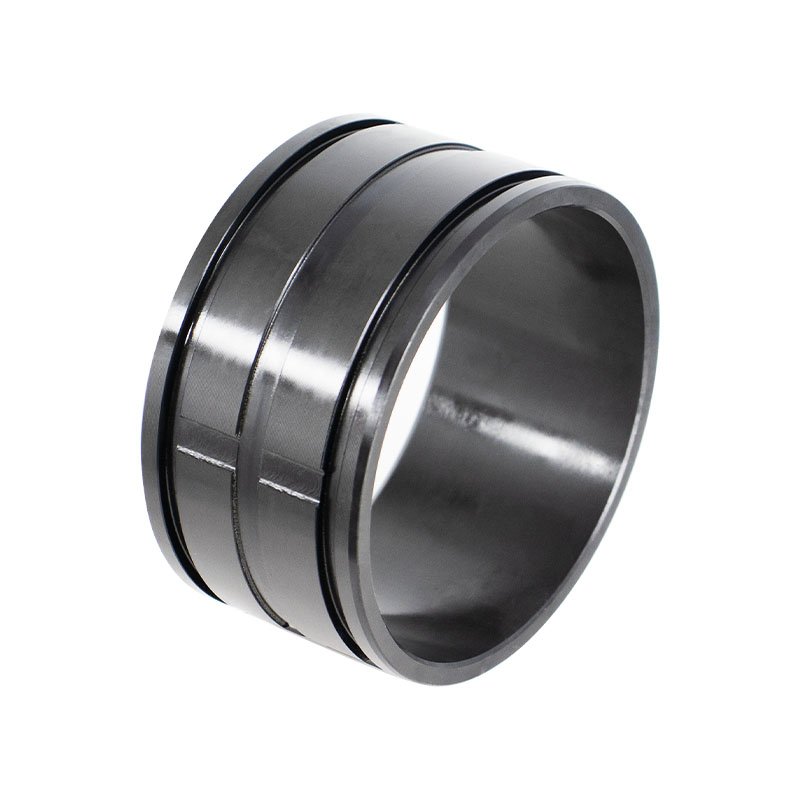

The inner surface of SN-H steel bushing is processed with various types of oil grooves, which improves the surface hardness and wear resistance after heat treatment. it is suitable for heavy-duty joint parts of construction machinery such as excavators, rotary drilling rigs, large loaders, wall grab and so on.
The steel bushing bearing of our company is based on 45#,40Cr, 20CrMo, GCr15 and other materials. From raw materials to finished products, each process is strictly controlled to ensure the product quality. it produces bushing with high wear resistance, high surface hardness and strong internal toughness.
Performance index | Data | |
Hardness | HRC | 50-62 |
Max Load | N/mm² | 80 |
Max Linear Velocity | m/min | 1.5 |
Max PV Value | N/m m²m/s | -70~+300 |
Working Temperature Limit | °C | 2 |
Linear Ex-pension Coefficient | 10-5/°C | 1. 1 |
SN-H-1
Integrally quenched steel bushing
Material 40Cr medium carbon alloy steel
Phosphating, molybdenum disulfide spraying on internal surface
Process Integral quenching, hardness 50~55HRC
SN-H-2
Carburize and quenched steel bushing
Material 20CrMnTi, 20CrMo and other low carbon or low carbon alloy steels
Phosphating, molybdenum disulfide spraying on internal surface
Surface carburizing and quenching Surface hardness 58-62HRC
The depth of carburize layer is 1.0~1.5mm.
SN-H-3
High frequency quenched steel bushing
Material 45、40Cr
Phosphating,molybdenum disulfide Surfaces praying on internal surface
Process Hardness of quenched and tempered treatment is201~269HB,internal surface is highly quenched,surface hardness is 55~60HRC, and effective hardness of quench-hardened case is 1.0~2.0mm.
